Neck Joint Router Bits

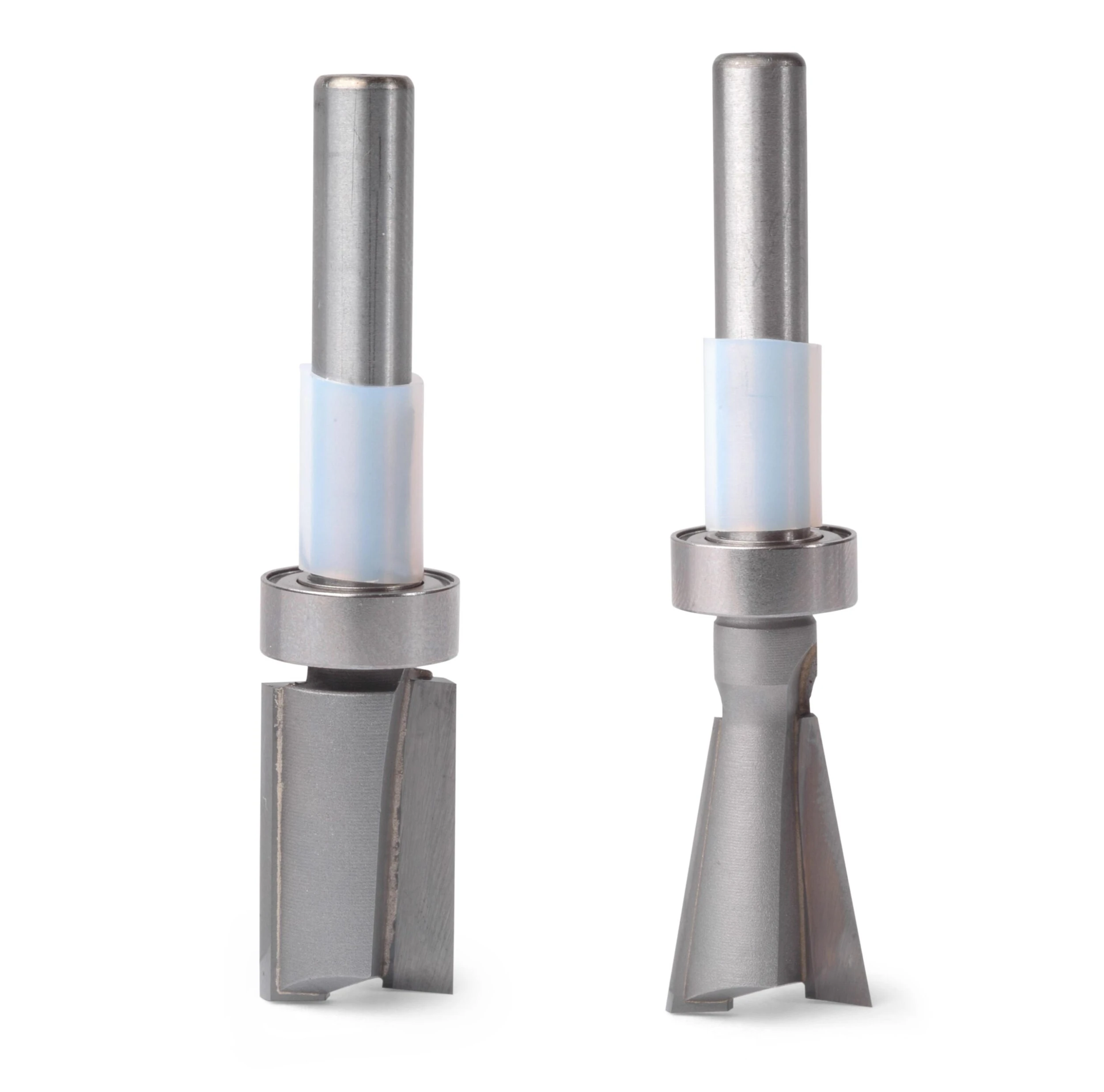

We developed these tools for cutting accurate neck joints, available for a traditional Martin dovetail, or for a straight mortise and tenon.

Each custom made cutter bit is carbide-tipped for long life. 1/4″ shank and a 1/2″ guide bearing. Designed for use with the Acoustic Neck Joint Routing Templates.

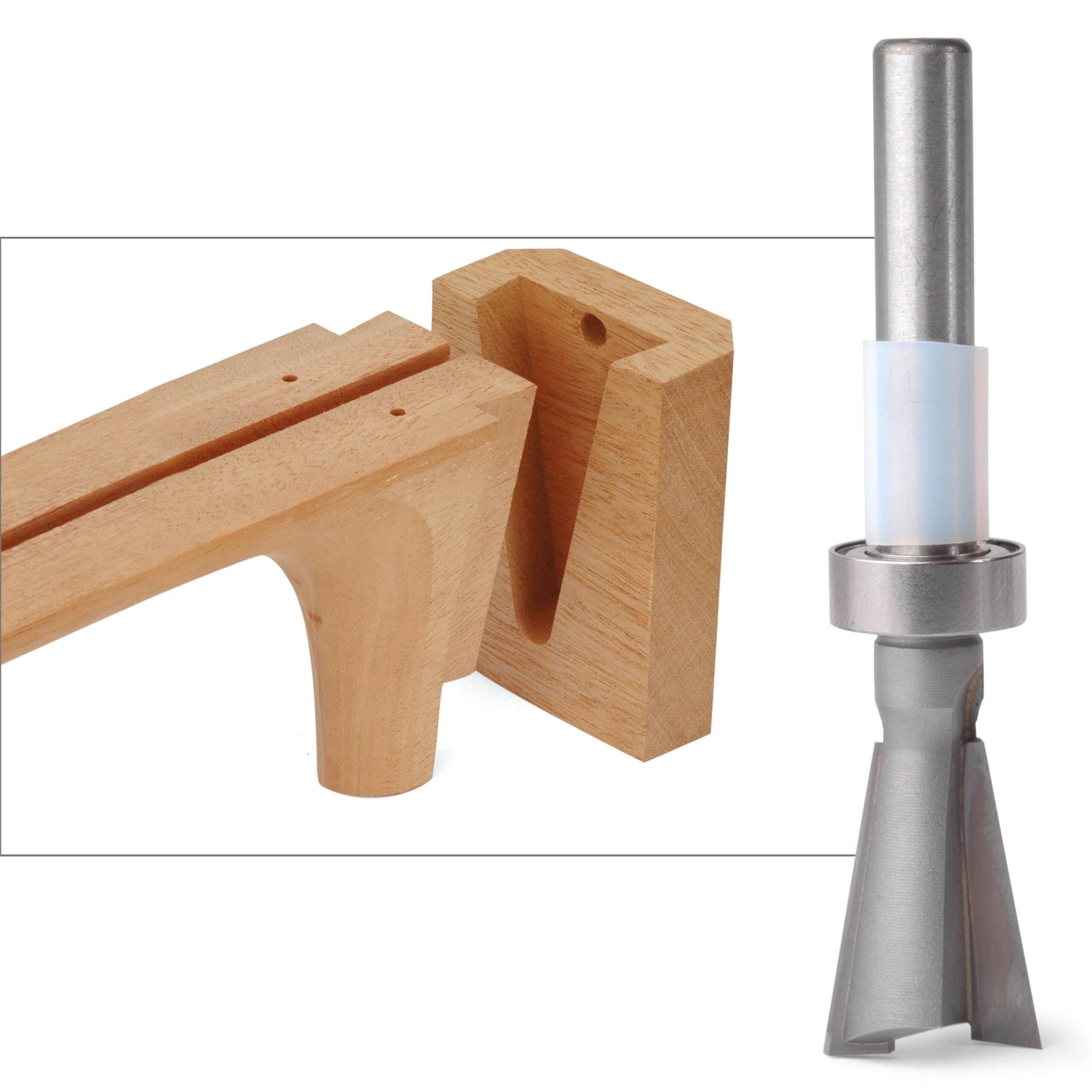

#4781 Dovetail bit
Overall length	2-9/16″ (65.09mm)
Shank length	1-1/2″ (38.10mm)
Maximum cutter diameter	9/16″ (14.29mm)
Cutting length for 10-degree dovetail angle	13/16″ (20.64mm)

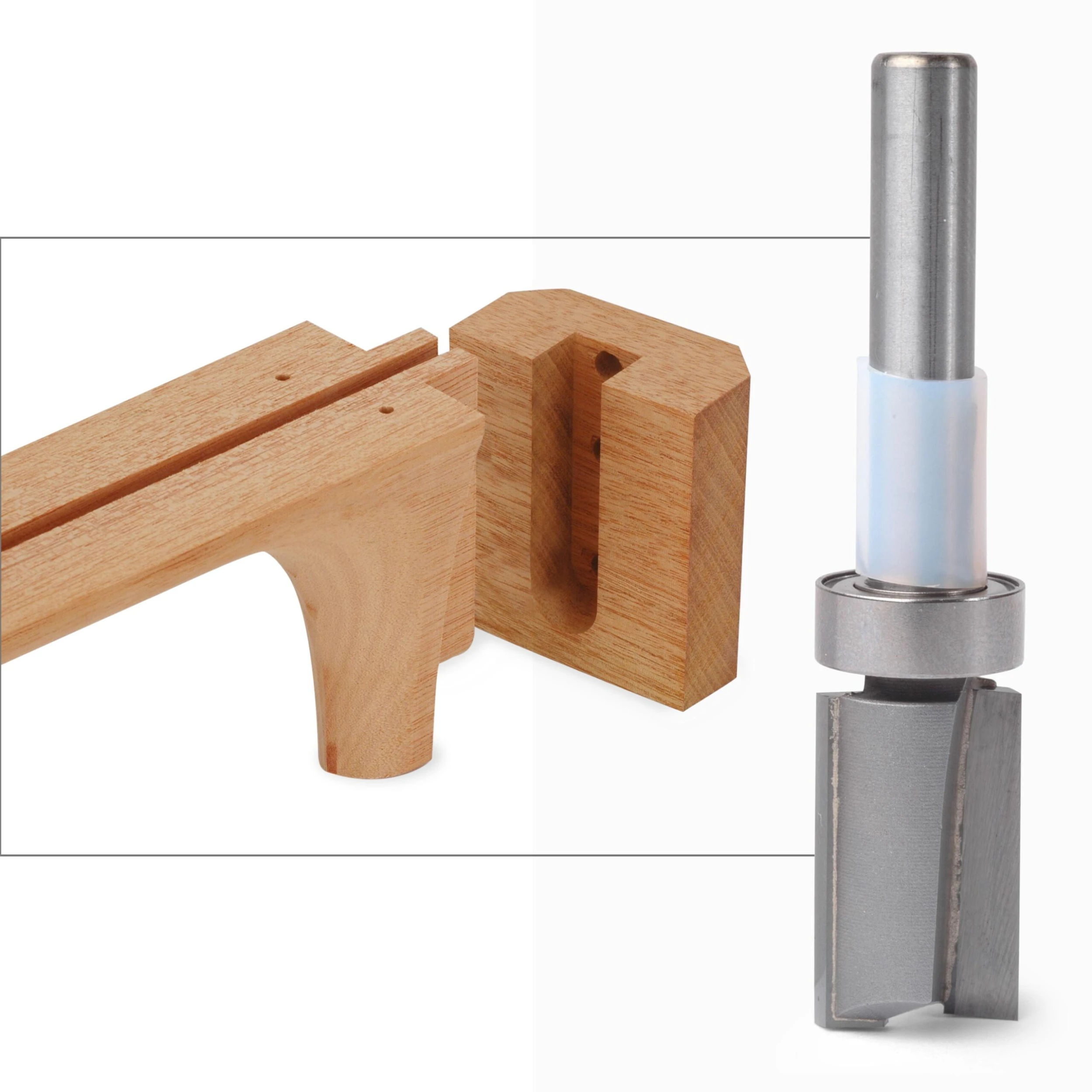

#4782 Straight cut bit
Overall length	2-5/16″ (58.74mm)
Shank length	1-1/2″ (38.10mm)
Maximum cutter diameter	1/2″ (12.70mm)
Cutting length	13/16″ (20.64mm)
